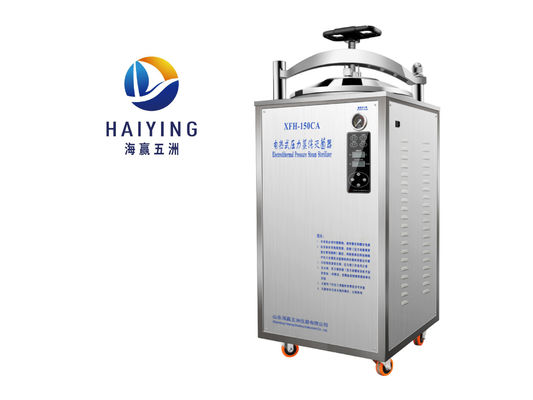

150L Vertical Autoclave Sterilizer
Product Details:
Place of Origin: | China |
Brand Name: | HAIYING |
Certification: | CE certificate |
Model Number: | XFH-150CA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 Set/Sets per day |
Detail Information |
|||
Tybe: | Vertical Autoclave Sterilizer | Model: | XFH-150CA |
---|---|---|---|
Autoclave Design: | Customized | Voltage: | AC220V/50Hz |
Adjustment Of Temperature: | 105~134℃ | Power: | 6.0kW |
Sterilization Chamber Size: | φ500*760MM | Package Size: | 660*660*1220MM |
Highlight: | 150L Vertical Autoclave Sterilizer,150L vertical steam sterilizer,XFH 150CA Vertical Autoclave Sterilizer |
Product Description
Stainless Steel Immersion Electric Heating Tube Vertical Autoclave Sterilizer
Vertical Autoclave Sterilizer :Characteristics:
The vertical steam sterilizer is a safe and reliable equipment with automatic control program.
With the shape of square vertical structure.it is made of shell,sterilization room,steam generator,pipeline system and control system.advantages include beautiful shape,easy operation,safe usage,saving energy,durable,multiple functions,rapid heating,and effective sterilization result.the product is an ideal equipment for medical and health institutions,laboratories,clinical institutions,biological research,food industry and other units to sterilize the medical equipment,dressings,glassware,solution culture medium and so on.
Chamber volume | 150L φ500*760MM | |||
power supply | 380V | |||
Working temperature | 120-134 ℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤ ±1℃ | |||
Timer | 0~99min~99hour59min | |||
Power | 6.0KW | |||
Overall dimension | 660*660*1220MM | |||
G.W/N.W | 130KG |
Vertical Autoclave Sterilizer Features:
1. The translational handwheel sterilizer can open the lid quickly and save effort.
2. Fuma casters are easy to move and fix.
3. It has a quick maintenance window, and there is no need to disassemble the outer cover for maintenance of electrical parts.
4. The pot body is covered with 10mm glass wool, and the door cover is made of a new type of glass fiber reinforced plastic insulation material, which effectively insulates the door cover and the main body to prevent burns.
5. Built-in water tank, you only need to pour water into the water tank to start sterilization, no need to add water every time.
6. Steam generation method: The main body is heated to directly generate saturated steam without external steam source.
7. There are user-defined sterilization procedures for exposed devices, device bags, rubber, dressings, liquids, and solids and liquids.
8. Self-expanding silicone rubber sealing ring has good sealing effect and long service life. It is molded from transparent medical silicone rubber.
9. The temperature control display accuracy is 0.1 degrees, and the LED digital displays the temperature, time and fault alarm code in the sterilization chamber.
10. Process control: "water injection, heating, sterilization, drying, exhaust, alarm, complete automatic control of the whole process", the indicator light flashes to show the current working status.
11. Adopt gravity displacement and positive pressure pulsation exhaust mode to exhaust the load and cold air in the sterilization chamber, built-in water tank, and exhaust a small amount of steam outside.
12. With a drying function, after the sterilization is completed, the sterilized items can be dried.
13. The operation interface, one-key start, convenient and fast, the keys adopt mechanical keys, and the number of actions is ≥100,000 times.
14. Pressure gauge: Range: 0~0.4MPa, accuracy grade: 1.6.
15. The solenoid valve works stably and has a long service life.
16. The buzzer prompts the end of the sterilization cycle, and the status light displays at the same time.
17. A printer is optional to record the temperature during the sterilization process.
18. The service life is 1 years.
