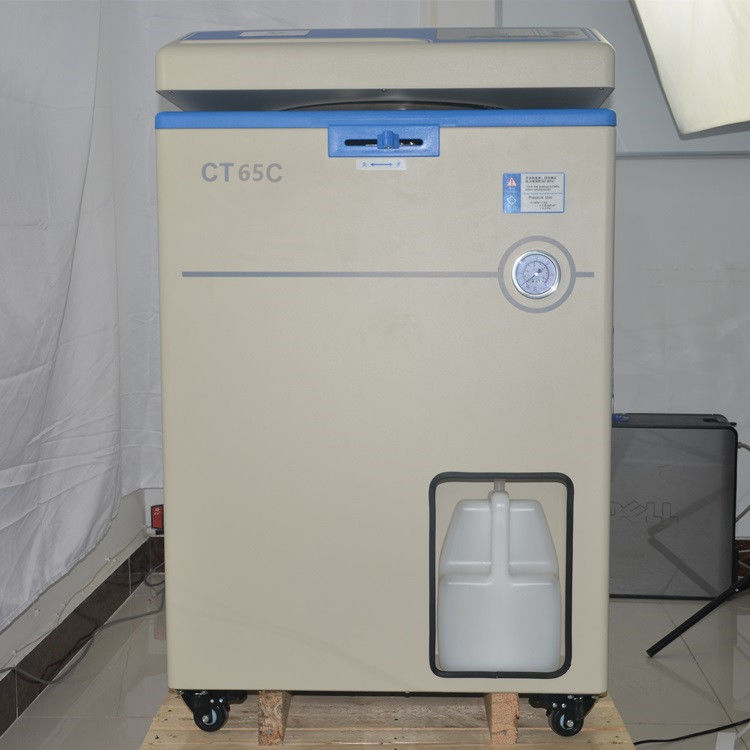

Intelligent Control Automatic Autoclave Sterilizer 400mm×530mm
Product Details:
Place of Origin: | China |
Brand Name: | HAIYING |
Certification: | CE certificate |
Model Number: | CT65C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 Set/Sets per day |
Detail Information |
|||
Tybe: | Automatic Autoclave Sterilizer | Model: | CT65C |
---|---|---|---|
Preset Range Of Holding Temperature: | 45℃~60℃ | Exhaust Temperature Preset Range: | 73℃—104℃ |
Pressure Gauge Display Range: | 0~0.6Mpa | Stainless Steel Basket: | (Ф360×200)2 Piece |
Rated Power: | 2800W | Sterilization Chamber Size (diameter × Height): | Ф400mm×530mm |
High Light: | 65L Automatic Autoclave Sterilizer,65L pressure steam sterilizer,400mm×530mm Automatic Autoclave Sterilizer |
Product Description
Intelligent Control System Six Preset Programs Memory Storage System Automatic Autoclave Sterilizer
Automatic Autoclave Sterilizer Sterilization mode :
◆ Solid mode: heating → sterilization → exhaust, air cooling
◆ Solid belt drying mode: heating → sterilization → drainage, exhaust → drying
◆ Liquid mode: heating → sterilization → pre-cooling → exhaust
◆ Liquid belt insulation mode: heating → sterilization → pre-cooling → exhaust → heat preservation
◆ Waste mode: heating → sterilization → exhaust, air cooling
◆ Agar mode: heating → melting → heat preservation
Automatic Autoclave Sterilizer Main features and functions :
◆ Large-diameter sterilization chamber: The 40cm large-diameter sterilization chamber provides a large space to meet various sterilization needs.
◆ Memory storage system: Users can set their own parameters, create multiple programs and call them at any time, and set the authority to use the instrument to three levels: user, administrator, and engineer, which is convenient for the good use and management of the sterilizer
◆ Drying function: dry completely, in line with CE standard cooling lock.
◆ Exhaust steam control: After the sterilization is completed, the exhaust valve can automatically open the exhaust steam according to the preset temperature.
◆ Calibration interface: Provide temperature and pressure inspection interface for easy calibration. ◆Saturated steam monitoring: The system automatically monitors the discharge of cold air to ensure a pure steam sterilization environment to ensure the best sterilization effect.
◆ Door opening temperature: Each program can set the door opening temperature of the cooling lock according to the thermal inertia of the sterilized material to prevent users from opening the lid of the sterilized material (especially liquid sterilized material) and causing burns when it is still in an unsafe state.
model | CT65 Dry sterilizer |
capacity | 65 liter |
Dimensions (length × width × height) | 660mm×640mm×1000mm |
Sterilization chamber size (diameter × height) | Ф400mm×530mm |
rated power | 2800W |
Automatic Autoclave Sterilizer Safety Performance :
◆ Over-temperature and heating protection: The system monitors the temperature changes in the sterilization chamber in real time. Once the temperature is too high or the temperature rises abnormally, it will be immediately cut off for protection.
◆ Double protection against water shortage and independent dry-heating protection: equipped with a low water level sensor and independent dry-heating protection device, which can monitor the water level in the sterilization chamber in real time to prevent dry-burning and prevent misjudgment; if the low-water level sensor fails, it prevents overheating and dry-burning The system will automatically start, immediately cut off the power to protect the heating ring and automatically alarm to ensure safety and reliability.
◆ Double pressure protection: Equipped with mechanical safety valve and electronic overpressure protection system, once the pressure is abnormal, the pressure can be relieved and the power will be cut off and alarm.
◆ Background security test: the system security and safety protection measures can be tested regularly.
◆ Overvoltage test: Regularly check whether the instrument can automatically cut off the power for protection or safety during the overvoltage protection system
