LCD laboratory steam sterilizer Coal And Electricity Heating
Product Details:
Place of Origin: | China |
Brand Name: | HAIYING |
Certification: | CE certificate |
Model Number: | XFH-75CA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 Set/Sets per day |
Detail Information |
|||
Tybe: | Autoclave Sterilizer | Model: | XFH-75CA |
---|---|---|---|
Sterilization Volume: | 75L | Place Of Origin: | CN |
Warranty Period: | 1 Year Online Technical Support | Temperature Range: | 105~134℃ |
High Light: | 75L laboratory steam sterilizer,75L mini autoclave machine,530mm laboratory steam sterilizer |
Product Description

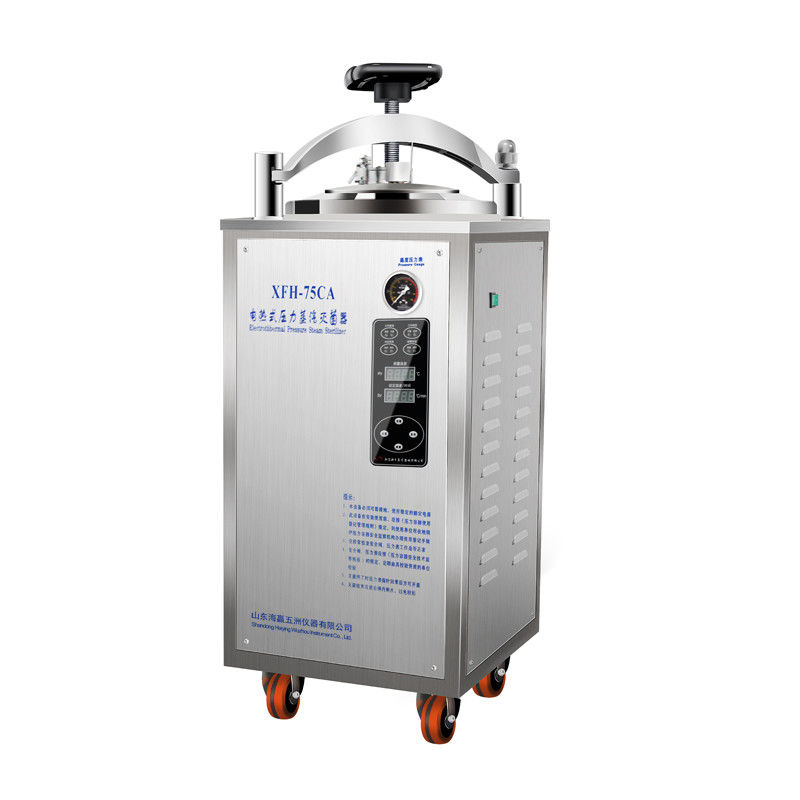

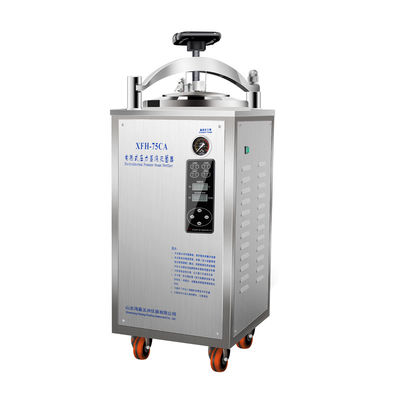

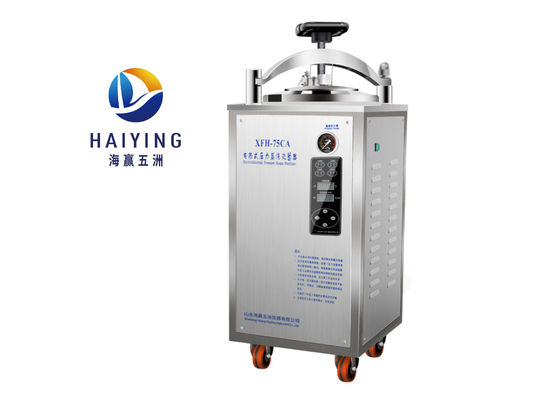

Coal And Electricity Electric Heating Automatic LCD Vertical Autoclave Sterilizer
Vertical Autoclave Sterilizer Features:
◆ The operation interface, one-key start, convenient and fast, the keys adopt mechanical keys, and the number of actions is ≥100,000 times.
Chamber volume | 75L φ380*530MM | |||
Product name: | Vertical Autoclave Sterilizer |
|||
Working temperature |
120-134℃ |
|||
Instrument classification | Class 2 | |||
Power | 4.5KW | |||
Overall dimension | 630*630*1400MM | |||
G.W/N.W | 77KG |
Vertical Autoclave Sterilizer Application Range:
Three valve safety explosion-proof vertical autoclave sterilizer series products are rapid and reliable disinfection and sterilization equipment using pressure saturated steam. They are suitable for medical and health institutions, scientific research, agriculture and other units to sterilize medical equipment, dressings, glassware, solution cultures, etc. Bacteria is an ideal equipment.
Vertical Autoclave Sterilizer Application Main Technical Performance Indicators Power Supply:
AC220V±22V 50Hz±1Hz Power: 3.5KW Sterilization volume: 75L Working method: continuous work Dimensions: 510*510*1170MM (length × width × height) Weight: 47KG
Vertical Autoclave Sterilizer Application Use Requirements Power Supply:
AC 220V±22V, frequency 50Hz±1Hz. Grounding requirements: effective grounding, grounding impedance ≤ 4Ω.
Vertical Autoclave Sterilizer Matters Needing Attention:
Can't use the high pressure steam sterilizer sterilization any damaging material and containing alkali metal composition of the material. Disinfection of these items will lead to explosive or corrosive tank and internal piping, and destroy the washer.
Vertical Autoclave Sterilizer Security
1. Over-temperature automatic protection device: the system automatically cuts off the heating power when the set temperature is exceeded;
2. Anti-dry protection device: when the water level is too low, the system automatically cuts off the heating power;
3. Over pressure automatic relief device: if the opening pressure of the safety valve is exceeded, the safety valve will open and release the pressure;
4. Overcurrent protection device: When the equipment current is overloaded, the overcurrent protection switch will act, and the system will automatically cut off the power supply;
5. Leakage protection device: When the equipment has a leakage fault, the system will automatically cut off the power supply.
6. Safety interlocking device: a new type of pressure and temperature double safety interlock, the door cannot be opened after the equipment is pressurized.
7. Door detection device: Only when the sterilizer door is closed in place, the power supply can be turned on and heated to produce steam.
