Maximum Capacity 8×20ml Low Speed Centrifuge Experimental Research
Product Details:
Place of Origin: | China |
Brand Name: | HAIYING |
Model Number: | TD4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Payment Terms: | L/C, D/A, D/P, T/T |
Detail Information |
|||
Product Name: | TD4 Low Speed Centrifuge | Maximum Centrifugal Force: | 2600 ×g |
---|---|---|---|
Maximum Speed: | 4000 R/min | Dimensions (length×width×height): | 380×260×310 Mm |
Weight (with Rotor): | 18 Kg | Power Supply: | AC220V 50Hz |
Highlight: | 8×20ml Low Speed Centrifuge,Experimental Research Low Speed Centrifuge,8×20ml laboratory centrifuge machine |
Product Description

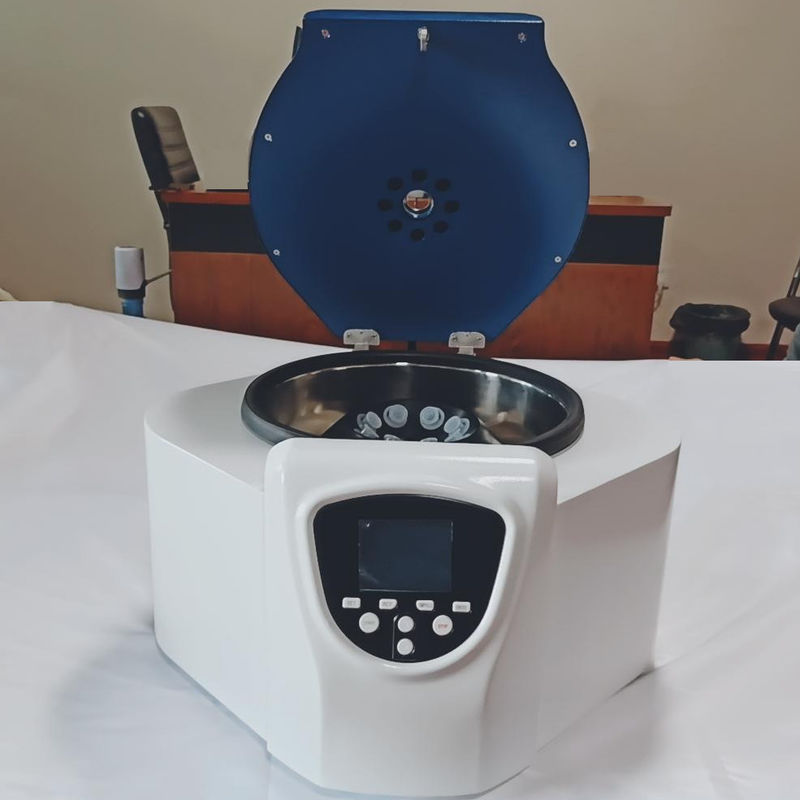

TD4 Maximum Capacity 8×20ml Experimental Research Low Speed Centrifuge
Low Speed Centrifuge TD4 Instrument Features:
Brushless DC motor, single-chip control, can pre-select the speed, time, centrifugal force, LCD display, full touch, early warning and alarm, multiple protections, new panel design, easy operation, fast start, fast shutdown, it is suitable for medical and health, food, environmental protection, Optimal equipment for scientific research and teaching.
TD4 Low Speed Centrifuge Installation Considerationsedit:
(1) The ground is firm and level to prevent vibration or movement of the instrument during operation of the refrigerated low-speed centrifuge.
(2) Adjust the left and right foot screws to ensure the level of the whole refrigerated low-speed centrifuge.
(3) It has an independent ground wire, and it is strictly forbidden to share the neutral wire with the ground wire to prevent electric shocks.
(4) There should be no corrosive gas and electromagnetic field interference around the refrigerated low-speed centrifuge to prevent premature failure of the protective layer on the surface of the instrument and interference with electrical components.
Host technical parameters | |
product name | TD4 Low Speed Centrifuge |
Maximum speed (r/min) | 4000 |
Timing range | 1-99h59min/continuous/short time centrifugation |
noise | ≤60dB |
power | 120W |
power supply | AC220V 50Hz |
Weight (with rotor) | 18 Kg |
TD4 Maximum Capacity 8×20ml Experimental Research Low Speed Centrifuge Advantage:
1. It adopts the single-chip microcomputer of Infineon and the drive module of Infineon, cooperates with the independent research and development of the control panel and the high-torque DC brushless motor, stable operation and low noise, providing a comfortable laboratory environment.
2. It has multiple early warning functions such as over-speed, over-temperature, unbalance, etc., and a special combination of damping devices makes the motor run smoothly and safely, preventing sample resuspension, and achieving excellent centrifugal effect.

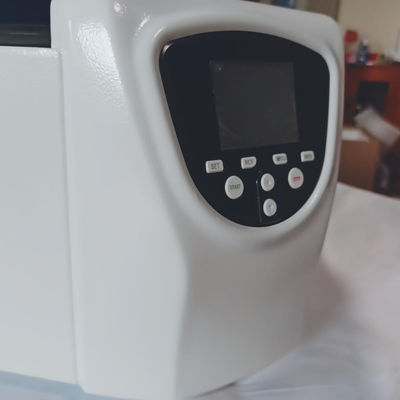

3. TFT-LCD true color display, dual operation modes of touch screen buttons and physical buttons, with dedicated keys for centrifugal force display, and display setting parameters and operating parameters at the same time. Parameters can be changed at any time during operation without stopping the machine. The operation interface is intuitive, Simple and easy to use;
4. The operating menu can provide multi-language versions (Chinese, English, Russian, Portuguese).
5. Biological safety airtight angle rotor adopts silicon rubber integral sealing ring, which can avoid aerosol overflow and fully guarantee the safety of staff and laboratory environment.
6. Security devices such as one-piece stamping and forming steel front face and three-layer steel protective cover are both sturdy and durable, and ensure the safety of staff and laboratories.
7. It adopts silent electromechanical integrated motor door lock, which is easy to use. Just close the door cover gently, and the door lock system will be triggered to lock the door cover safely.
