30ul Automated Dna Extraction Machine Multi Source Samples
Product Details:
| Place of Origin: | China |
| Brand Name: | HAIYING |
| Certification: | CE certificate |
| Model Number: | AU1001-96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | After-sales Service Provided: Online support, Video technical support, Free spare parts |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Place Of Origin: | CN | Processing Volume: | 30-1000ul |
|---|---|---|---|
| Magnetic Head: | 96 | Noise Decibel: | <60db |
| Magnetic Bead Recovery Rate: | > 95% | Purify The Difference Between Pores: | CV <3% |
| After-sale Service: | Online Technical Support | Warranty: | 1 Year |
| High Light: | 30ul automated dna extraction machine,30ul automated dna extraction system,60db automated dna extraction machine |
||
Product Description
Rapid Temperature Rise Scientific Research Platform Automated Nucleic Acid Extractor
Automated Nucleic Acid Extractor Product Details:

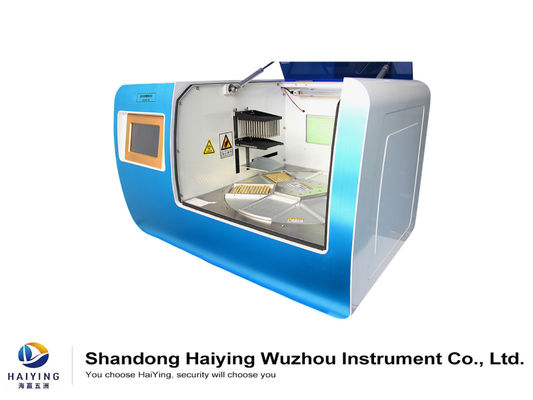

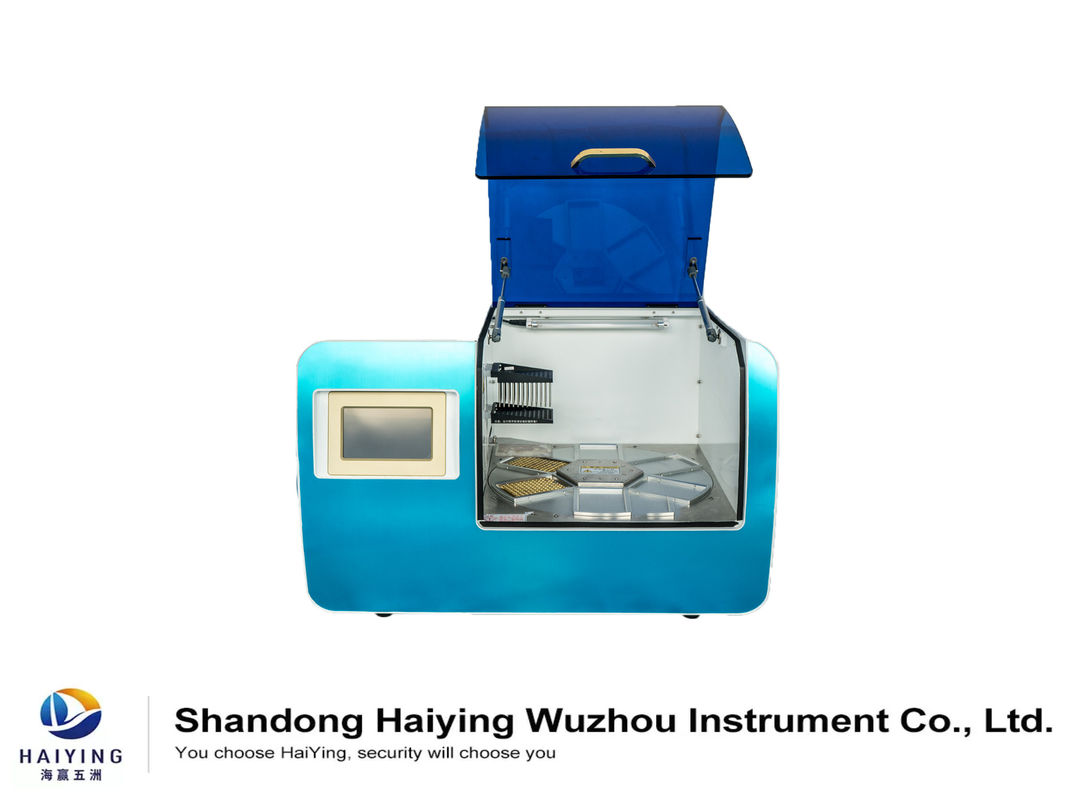

AU1001-96 is a fully automatic nucleic acid extraction instrument launched by Haiying Wuzhou based on the needs of large-scale clinical genetic analysis. This machine uses magnetic bead separation technology to separate and purify nucleic acids in multi-source samples (such as blood, animal and plant tissues, cells) according to the selection of corresponding kits. The whole instrument has stable performance, low noise, automatic operation, fast and simple operation, and can purify 32 samples at the same time. It is a powerful "assistant" for clinical genetic testing and molecular biology laboratory research.
| Model | AU1001-96 |
| Sample Throughput | 1 ~ 32 |
| Number Of Magnets | 32 |
| Purification Sensitivity Positive Detection Rate Of 100 Copies Sample | > 95% |
| Purify the Difference Between Pores | CV <3% |
| Cracking Temperature | Room temperature to 120 ° C |
| Elution Temperature | Room temperature to 120 ° C |
Automated Nucleic Acid Extractor Working Principle:
Use the magnetic rod on the magnetic rod rack in the machine to move the magnetic beads that have adsorbed nucleic acid to different reagent tanks, and then use the magnetic rod sleeve sheathed on the outer layer of the magnetic rod to stir the liquid repeatedly and mix evenly. Lysis, nucleic acid adsorption, washing and elution, and finally get the purest nucleic acid.
Automated Nucleic Acid Extractor Product Description:
◆ Used to extract nucleic acid from viruses, tissues, cells, swabs, feces, plants, blood and other clinical or forensic samples.
◆ 32 automatic nucleic acid is used to extract up to 32 samples, coagulated blood or animal tissues do not require pretreatment
◆ The recovery rate of magnetic beads can reach 99%, which is the highest recovery rate among similar products
◆ Large-screen full-color display, Touch screen operation; the program can be updated in real time
◆ Flexible and convenient: the equipment is small in size, the operation is extremely convenient, it can be programmed freely, and the experiment can be completed quickly;
◆ A wide range of sample types: it can process tissues, various blood, serum, cells, body fluids and other complex samples;
◆ Open platform: complete the experiment with more than one hundred magnetic bead method kits, and ensure that the reagents are completely open.
◆ Not wall pillar, wall gun, head, block board, avoid.A waste of precious samples.
◆ Animal tissue, blood coagulation direct extraction of DNA, do not need to grinding digestion in advance, avoid lengthy grinding centrifugal steps.
◆ Multi-speed and multi-module for selection, and can store 100 programs to meet different customer requirements
◆ Custom lysis and elution temperature
◆ Suitable for different samples, such as animal and plant tissues, serum, plasma, etc.
Flexible control
◆ Our nucleic acid R&D team has more than ten years of experience in the industry and provides strong after-sales support.
