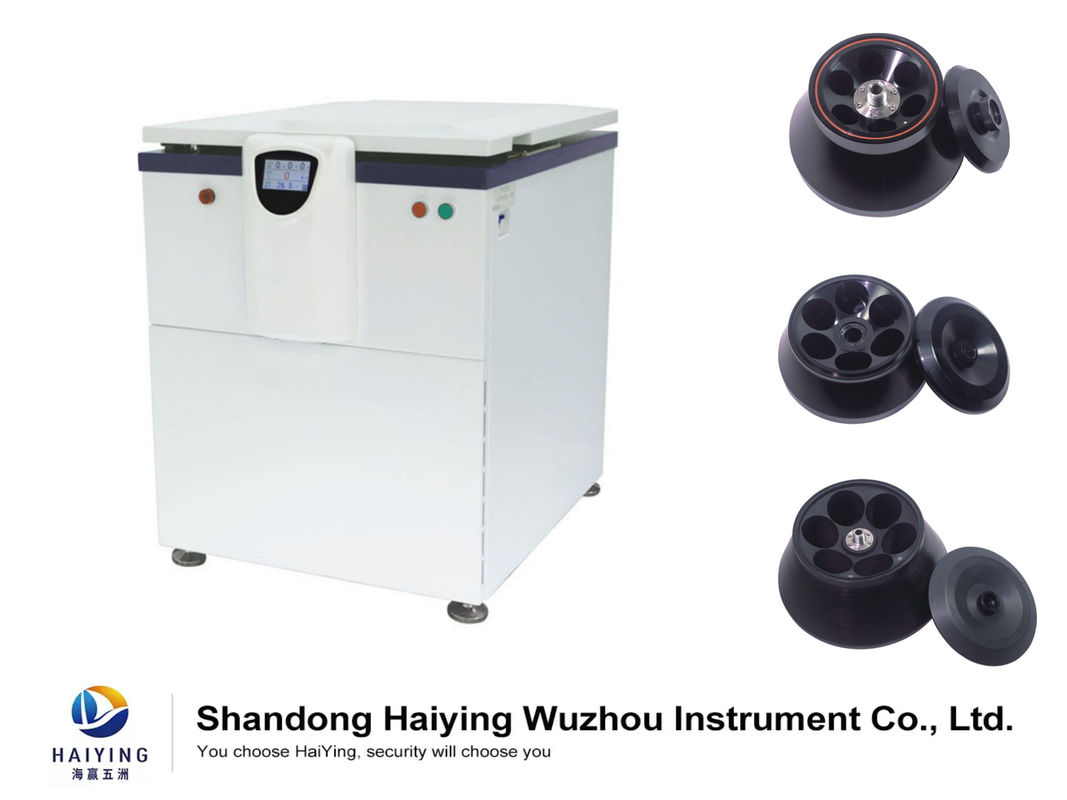

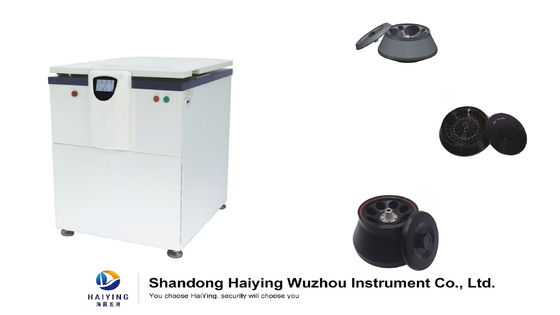

Steel Large Capacity Refrigerated Centrifuge 21000 Rpm
Product Details:
Place of Origin: | CHINA |
Brand Name: | HAIYING |
Certification: | CE |
Model Number: | HR21M |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | discuss personally |
Packaging Details: | wooden case |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information |
|||
Type: | HR21M | Name: | Large Capacity Refrigerated Centrifuge |
---|---|---|---|
Max RCF: | 48811×g | Max Speed: | 21000r/min |
Max Capacity: | 6×500mL | Timer Range: | 1min-99h59min,with Continuous Run Function |
Power Supply: | AV220V 50hz | Temp Control Range: | -20℃~+40℃ |
Highlight: | HR21M Large Capacity Refrigerated Centrifuge,21000 Rpm high capacity centrifuge,21000 Rpm Large Capacity Refrigerated Centrifuge |
Product Description
Large Capacity Refrigerated Centrifuge Features And Advantages:
* Variable frequency motor drive, microcomputer control, LCD and digital display
* Automatic rotor identification, automatic fault diagnosis
* Automatically lock the rotor
* Easy to carry
* 12 kinds of operating procedures and 19 kinds of acceleration and deceleration levels for your choice
* Imported compressor, cooling/heating dual circuit, precise temperature control
* RCF program can be set directly.
* Using imported famous frequency controller, accurate control and durable
* Time, speed, and RCF can all be modified during operation.
* All steel body, three layers of steel to ensure safety
Max RCF
|
48811×g
|
Max Speed
|
21000r/min
|
Max Capacity
|
6×500mL
|
Timer Range
|
1min-99h59min, with continuous run function
|
Temp control range
|
-20℃~+40℃
|
Noise level
|
≤65dB(A)
|
Power supply
|
AC220V 50Hz
|
Large capacity refrigerated centrifuge is equipment often used in physical and chemical experiments. In order to ensure the smooth and safe conduct of the experiment and extend the life of the equipment, the experimenter must follow the following operating procedures.
(1) Inspection of the equipment before the start of the experiment, including checking whether the bolts are loose, whether the drum is firmly connected to the main shaft, whether the braking device is complete and effective, and whether the power supply is reliable.
(2) Take two centrifuge tubes, weigh them on a balance, and adjust the amount of material in the tubes to make the relative weights of the two tubes and their sleeves equal. If there is only one material, it can be filled with clear water to balance it. Place the centrifuge tube containing the material in the metal tube sleeve of the centrifuge, and if necessary, put a layer of cotton on the bottom of the tube.
(3) Put the centrifuge tube and its sleeve into the centrifuge moving plate according to the symmetrical position, and cover the cover.
(4) Turn on the power and slowly move the pointer of the speed regulator to the required speed scale for a certain period of time (about 5 min).
(5) After reaching a certain time, slowly turn the pointer of the speed regulator to zero. Then turn off the power.
(6) After the moving plate automatically stops rotating, the centrifuge cover can be opened to take out the centrifuge tube. Take care when taking out the centrifuge tube. Do not allow the precipitated material to rise due to vibration and cause turbidity.
(7) When using the centrifuge, if the centrifuge is vibrating and there is noise, the internal weight is unbalanced. If there is a metal sound, it often means that the internal test tube is broken. It should be stopped immediately for inspection.
(8) Finally, check thoroughly and cut off the power supply.
