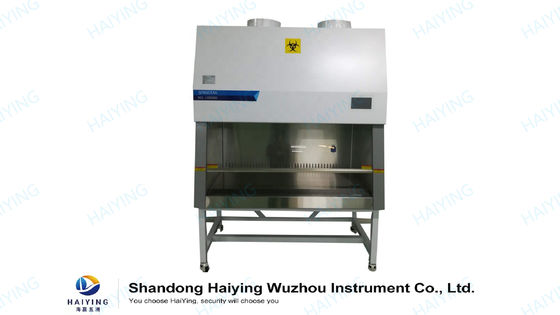

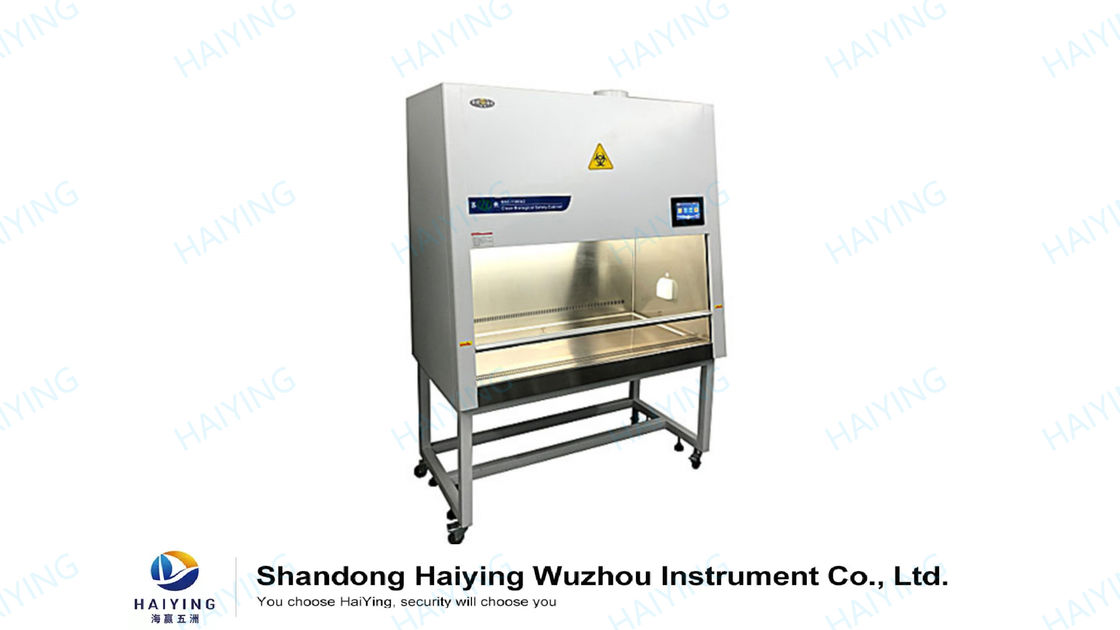

SS304 Class100 BSC Biosafety Cabinet For Chemotherapy
Product Details:
Place of Origin: | CHINA |
Brand Name: | HAIYING |
Certification: | CE |
Model Number: | BSC-1300B2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information |
|||
Type: | Blood Testing Equipments | Name: | BSC Biosafety Cabinet |
---|---|---|---|
Overall Size: | 1500×800×2120mm | Purification Area Size: | 1300×700×600mm |
Product Name: | Biosafety Cabinet | Model: | BSC-1300B2 |
Downflow Velocity: | 0.31±0.025m/s | Inflow Velocity: | 0.48±0.025m/s |
High Light: | Class100 BSC Biosafety Cabinet,SS304 BSC Biosafety Cabinet,biosafety cabinet for chemotherapy |
Product Description
BSC Biosafety Cabinet Features:
◆ The shape design conforms to the ergonomic principle of 10 degrees inclination angle, which increases comfort and reduces work fatigue.
◆ Split structure, cabinet and bracket can be separated.
◆ The negative pressure channel design on all sides avoids the diffusion of harmful gases and aerosols, making it safer and more reliable.
◆ Vertical laminar negative pressure, air curtain isolation design, effectively prevent possible leakage in the gap of the glass front window, ensuring comprehensive protection of the environment, personnel and samples, and preventing cross-infection.
◆ The visible front window is made of 6mm tempered glass, which is explosion-proof, UV-proof and non-reflective.
Model | BSC-1300B2 |
Clean Grade | HEPA:ISO 5 calss ( Class100 ) |
ULPA:ISO 4 Class ( Class10 ) | |
HEPA Filter | HEPA:≥99.995% , @0.3μm |
ULPA:≥99.999% , @0.12μm | |
Air tightness | 99.99≤E≤99.999 |
Overall Dimensions | 1500×800×2120mm |
Working Space | 1300×700×600 mm |
Downflow Velocity | 0.35m/s |
Forward intake wind speed | 0.25m/s±0.025m/s |
Maintenance of BSC Biosafety Cabinet:
In order to ensure the safety of the biological safety cabinet, the safety cabinet should be maintained and maintained regularly:
1. The working area of the safety cabinet should be cleaned and disinfected before and after each use.
2. After the service life of the HEPA filter expires, it should be replaced by a professional who has received special training in biological safety cabinets.
3. The laboratory biosafety manual promulgated by WHO, the U.S. biosafety cabinet standard NSF49 and the China Food and Drug Administration biosafety cabinet standard YY0569 all require one of the following conditions, the biosafety cabinet should be tested for safety: the installation is completed and put into use Before; annual routine inspection; when the safety cabinet is shifted; after replacing the HEPA filter and repairing internal components.
Safety inspection includes the following aspects:
1. Inlet flow direction and wind speed detection: Inlet flow direction is detected on the working section by smoke method or wire method. The detection position includes the periphery and middle area of the working window; the wind speed of the intake flow is measured by an anemometer.
2. Downstream wind speed and uniformity detection: Use anemometers to evenly arrange points to measure cross-sectional wind speed.
3. Work area cleanliness detection: use dust particle timer to detect in the work area.
4. Noise detection: The horizontal center of the front panel of the biological safety cabinet is 300mm outwards and 380mm above the work surface to measure the noise with the sound level.
5. Illumination detection: set a measuring point every 30cm along the center line of the length of the worktable.
6. Leakage detection of the cabinet: Seal the safety cabinet and pressurize it to 500Pa. After 30 minutes, connect a pressure gauge or pressure sensor system in the test area to detect with the pressure decay method, or detect with the soap bubble method.
