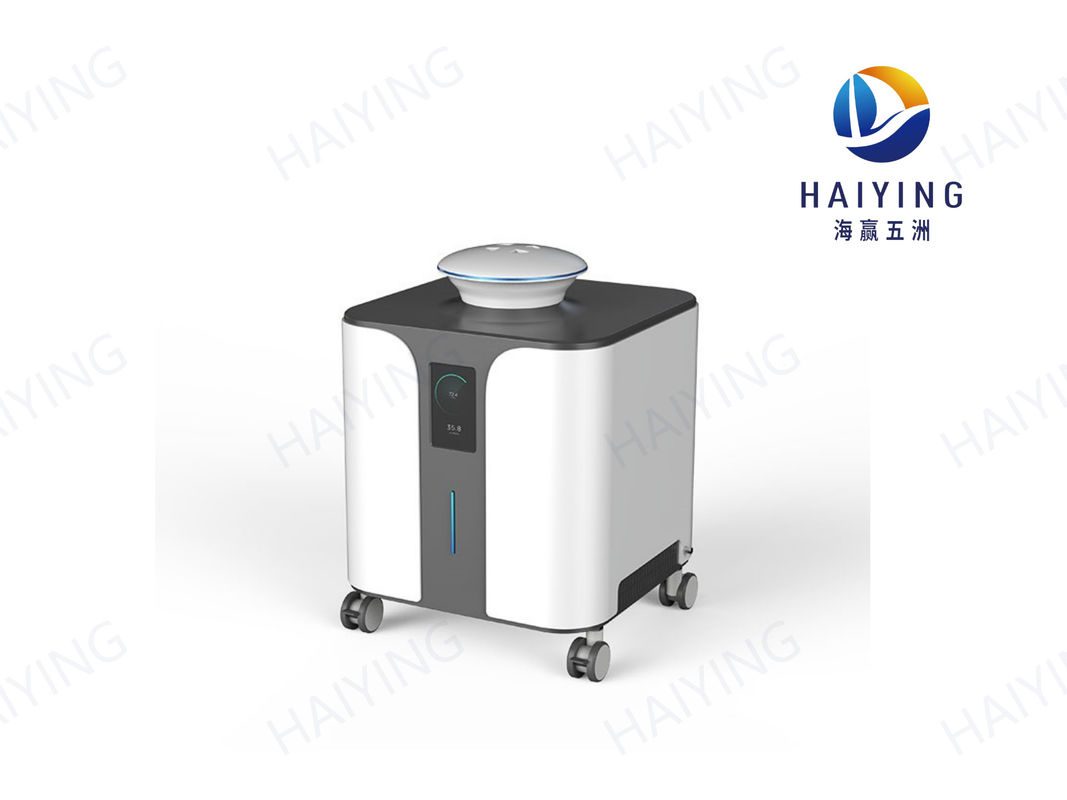

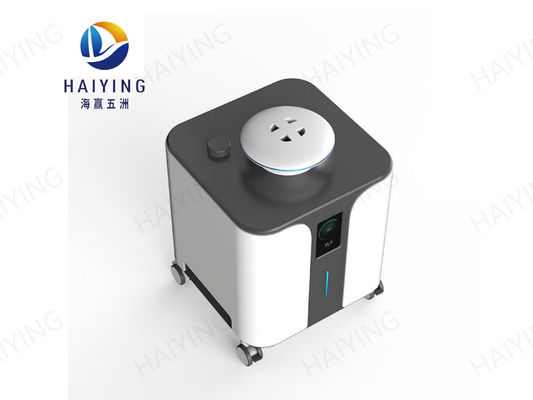

Pet Hospital Hydrogen Peroxide Sterilizer Class II
Product Details:
| Place of Origin: | China |
| Brand Name: | HAIYING |
| Certification: | CE certificate |
| Model Number: | DS1001/DS1002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/7days |
|
Detail Information |
|||
| Tybe: | Hydrogen Peroxide Sterilizer DS1001/DS1002 | Input Power: | 1.1 KW |
|---|---|---|---|
| Instrument Classification: | Class Ii | Warranty: | 1 Year |
| Net Weight: | 48 Kg | Length*Width*Depth: | 580mm*580mm*760mm |
| Working Environment Temperature Range: | 15°-40°C | Gasification Efficiency: | 20 Ml/min |
| High Light: | Pet Hospital Hydrogen Peroxide Sterilizer,DS1002 hydrogen peroxide gas sterilization,Class II Hydrogen Peroxide Sterilizer |
||
Product Description
Pet Hospital Complete Verification Information Hydrogen Peroxide Sterilizer
Hydrogen Peroxide Sterilizer technical parameters
1. Power supply: AC 220V/50Hz
2. Maximum power: ≤1100W
3. Adding speed: 1～20g/min
4. Working environment temperature range: 15°-40°C
5. Vaporization temperature: ≤100℃
6. Noise: ≤62dB(A)
7. Sterilizer: 30% food grade hydrogen peroxide solution
8. Killing rate: the killing ability of thermophilic fat spores reaches 10
9. Working mode: continuous work
10. Weight: 48kg
| Model | DS1001/DS1002 |
| Input power | 1100W |
| Nebulization efficiency | 20 ml/min |
Main features of Hydrogen Peroxide Sterilizer
1. The outer shell, internal pipes and parts are all made of 304 stainless steel;
2. The seal material is silicone rubber;
3. Used for sterilization in confined spaces such as isolators, especially for online sterilization (SIP) of freeze dryers;
4. When used in freeze dryer sterilization, it has the following advantages compared with traditional methods: a. Vacuum drug delivery is used in the chamber, no dead corners of sterilization b. No need to modify the freeze dryer c. Low operating and configuration costs d. Short sterilization cycle
5. It can kill more than 6 logarithms of Bacillus stearothermophilus;
6. The sterilization process has good repeatability and is easy to verify;
7. After the sterilization space is sterilized, it is non-toxic and no residue;
8. It adopts movable casters for easy movement.
9. Safety: normal temperature, normal pressure, non-toxic, no residue;
10. Fast: fast sterilization cycle process, saving cost;
11. Effective: Hydrogen peroxide gas has excellent material compatibility (devices, electronic components and building materials) The DS1001/DS1002 vaporized hydrogen peroxide generator (applicable to confined spaces and on-line sterilization of lyophilizer VHPS) uses the advantages of hydrogen peroxide in its gaseous state at room temperature that it has more spore-killing ability than liquid state. Hydroxyl group is used to attack cell components, including lipids, proteins and DNA tissues, and meet the requirements of complete sterilization. It is specially designed and manufactured for sterilization and freeze-drying of enclosed spaces such as isolation rooms and isolators Special equipment for online sterilization of VHPS.
Principle of Hydrogen Peroxide Sterilizer :
The DS1001/DS1002 series hydrogen peroxide sterilization system uses a low-speed liquid pump to continuously quantify the disinfectant solution, and an ultra-high-speed fan provides high-kinetic energy carrier gas. When a small amount of liquid enters the nozzle at a low speed and encounters a high-speed carrier gas, the gas produces a strong collision and crushing of the liquid droplets. Air enters the nozzle in a porous and eccentric manner to achieve adjustment of centrifugal rotation, which increases the distance and strength of the collision between gas and liquid, so that the gas has a stronger tearing effect on the droplets, so that it can achieve sub-micron atomization. effect. Then through the strong power of the ultra-high-speed machine, the sub-micron particles are quickly transported to the far end and spread perfectly to the entire space, thereby achieving efficient sterilization.
